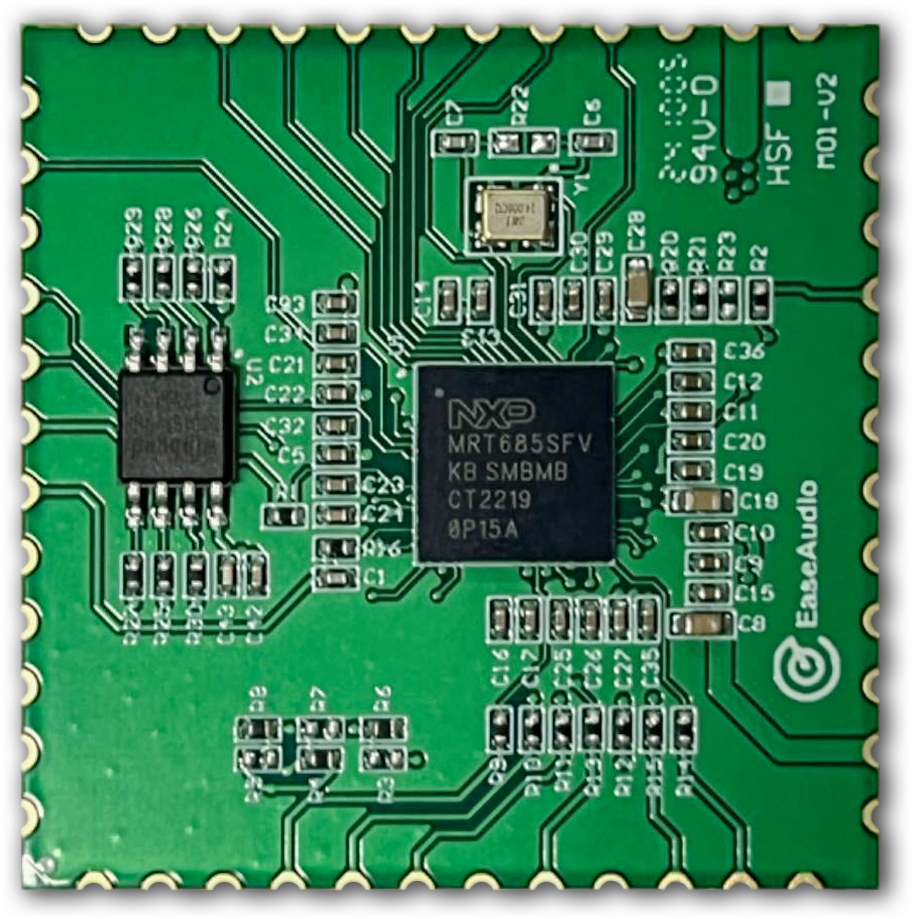

NXP-RT685-1 Module

Built on the NXP RT685 process and pre-integrated with Audio Weaver, this module offers a versitle foundation for various audio applications such as guitar pedals, USB microphones, Far-field audio fron-ends (AFE), microphone array processing, and conferencing devices.

The NXP-RT685-1 empowers rapid development for both prototypes and production runs, with support for even low-volume needs. Get started today and focus on creating innovative audio experiences.

Specifications

  • Processors

    Cadence Xtensa HiFi4 DSP

    Up to 600 MHz

    128kB Local memory

    Arm Cortex-M33

    Up to 300 MHz

    1MB SRAM shared by both processors

  • Audio Weaver

    Audio Weaver by DSP Concepts, the audio development platform that makes the entire product development journey from R&D to production easy, provides a powerful audio signal processing toolbox, enabling users to achieve high-quality audio processing with a robust libraries of signal processing modules that can be assembled with a drag-and-drop interface

    *Audio Weaver licenses are not included*

  • Audio IO

    Create up to of 18 input 14 output devices.

    3x I2S interfaces for up to 6 channels of audio IO

    2x PDM inputs for up to 4 microphone channel inputs

    USB Audio wit up to 8 input an 8 output channels

  • Control Interfaces

    1x I2C

    1x UART

    1x USB

Interested in using this in your next project?

Reach out below to learn more!
